Slimline: Wall Mounted - Swivel Gooseneck Outlet
Slimline: Wall Mounted - Swivel Gooseneck Outlet
Product Code: LCN110W
Couldn't load pickup availability
Product description
Enware's Slimline laboratory outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and finger tip control. Handles are colour coded for easy service identification and use complimentary buttons.
Key Selling Points
- Ceramic disc (3/4 turn)
- Durable powder coat finish
- Handles and indicator button to suit specified media
- Tube nozzle with flow control and dual check valves
- Integral isolation/ service valve
- Swivel gooseneck spout
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583
- Minimum Working Temperature (Deg C)
- 0
- Maximum Working Temperature (Deg C)
- 90
- Maximum Static Pressure (kPa)
- 1000
- Inlet Connection
- 1/2" BSP Male
- Outlet Connection
- Tube Nozzle, 3/8" BSP Female (without nozzle)
BIM Files
Brochures

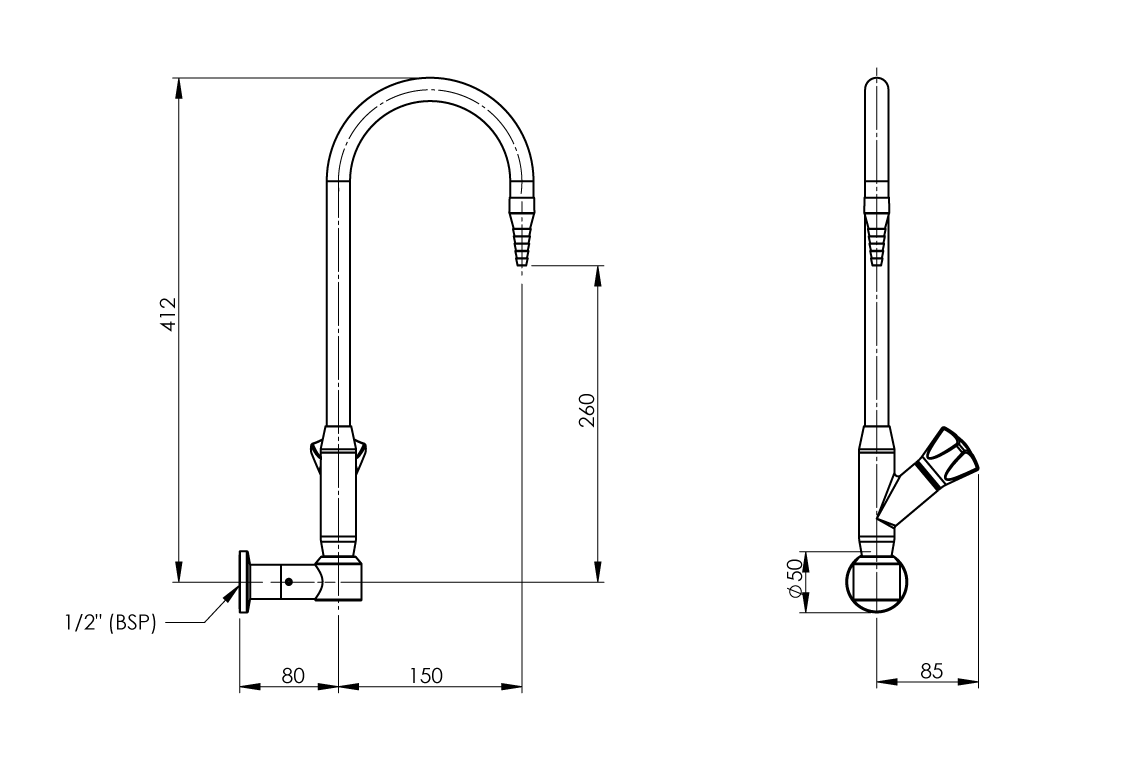

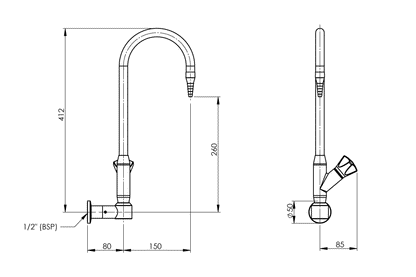

Dimensional Drawings
Product Information
