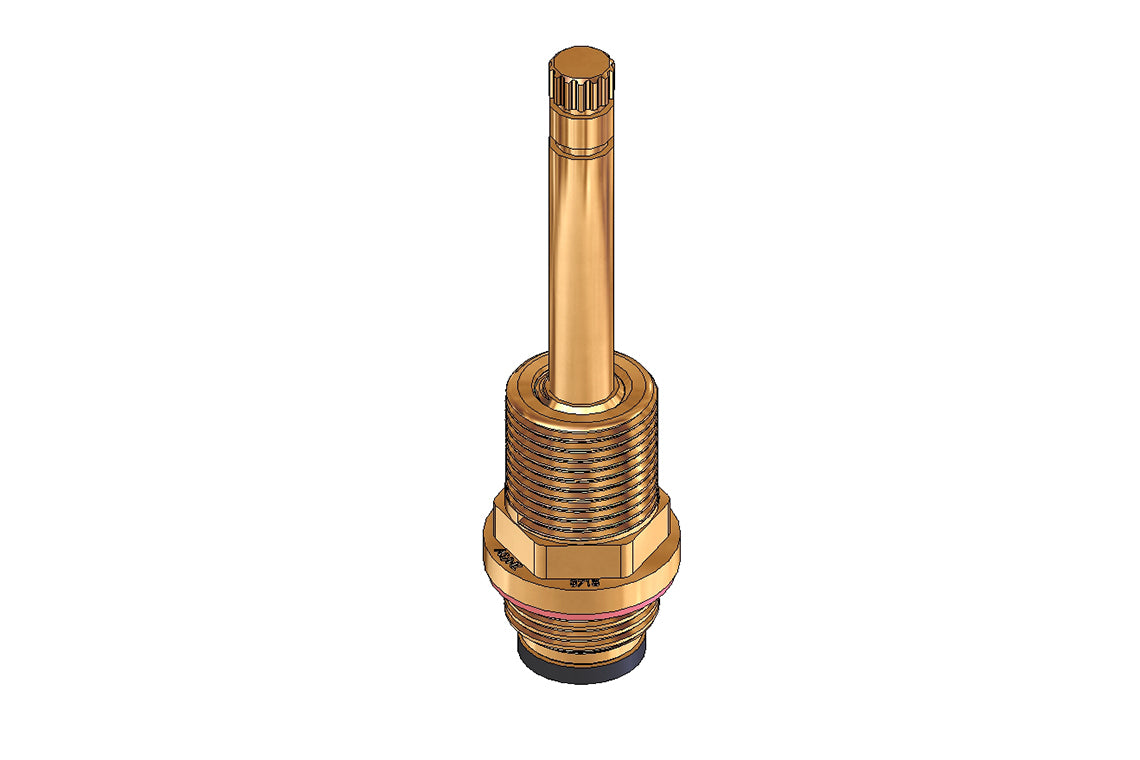

Concealed Spindle:Series Recess Stuffing Box Assembly - Jumper Valve
Concealed Spindle:Series Recess Stuffing Box Assembly - Jumper Valve
Product Code: CS382
Couldn't load pickup availability
Product description
A complete spindle and stuffing box assembly used for CS recess/wall tapware.
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 5/8 BSP
- Valve Type
- Jumper Valve
BIM Files
Brochures

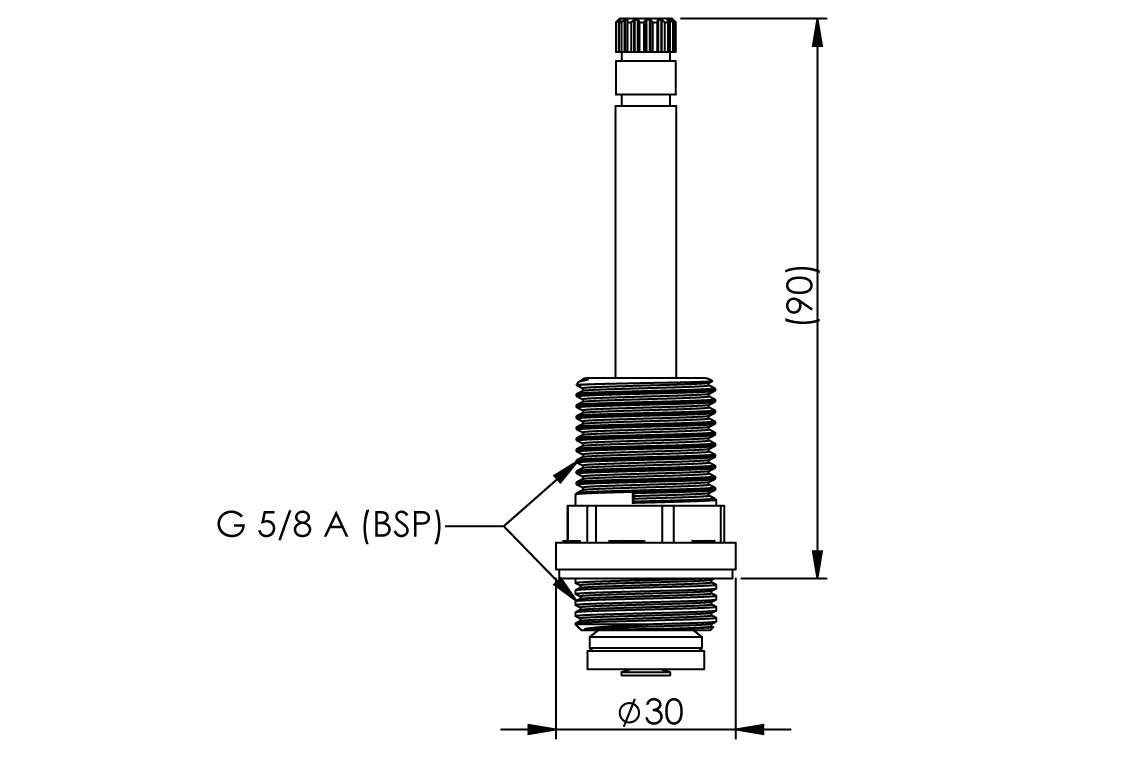

Dimensional Drawings
Product Information
