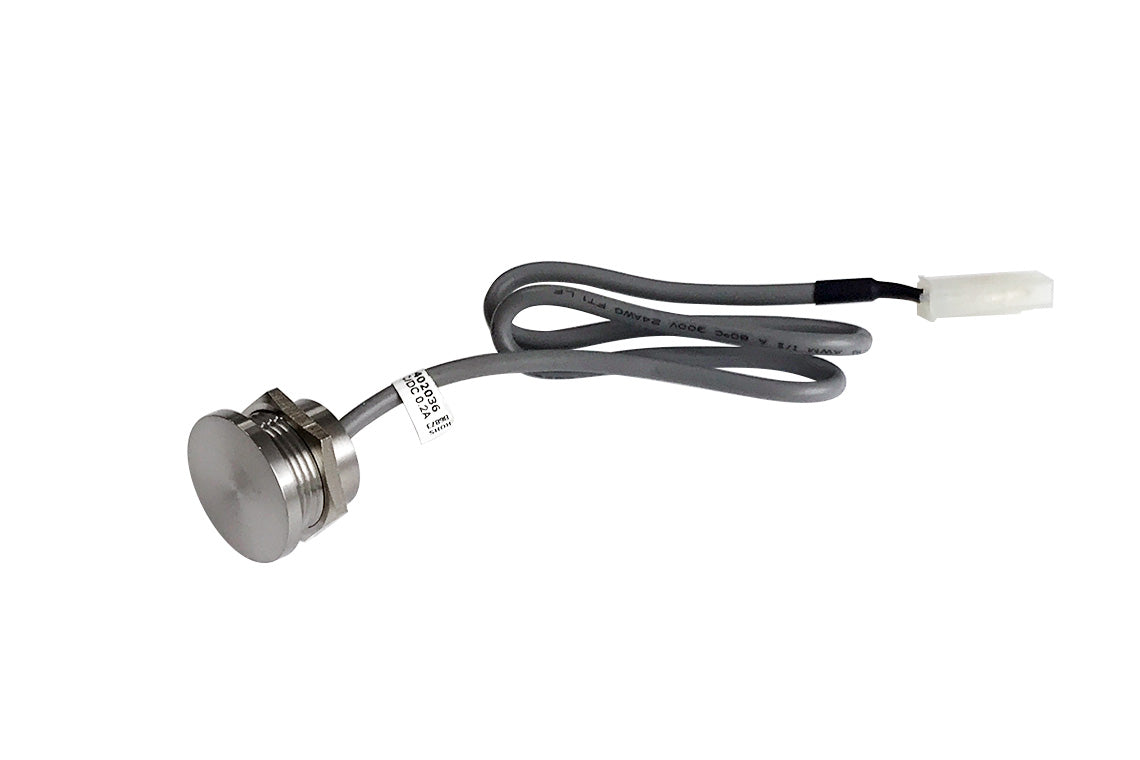

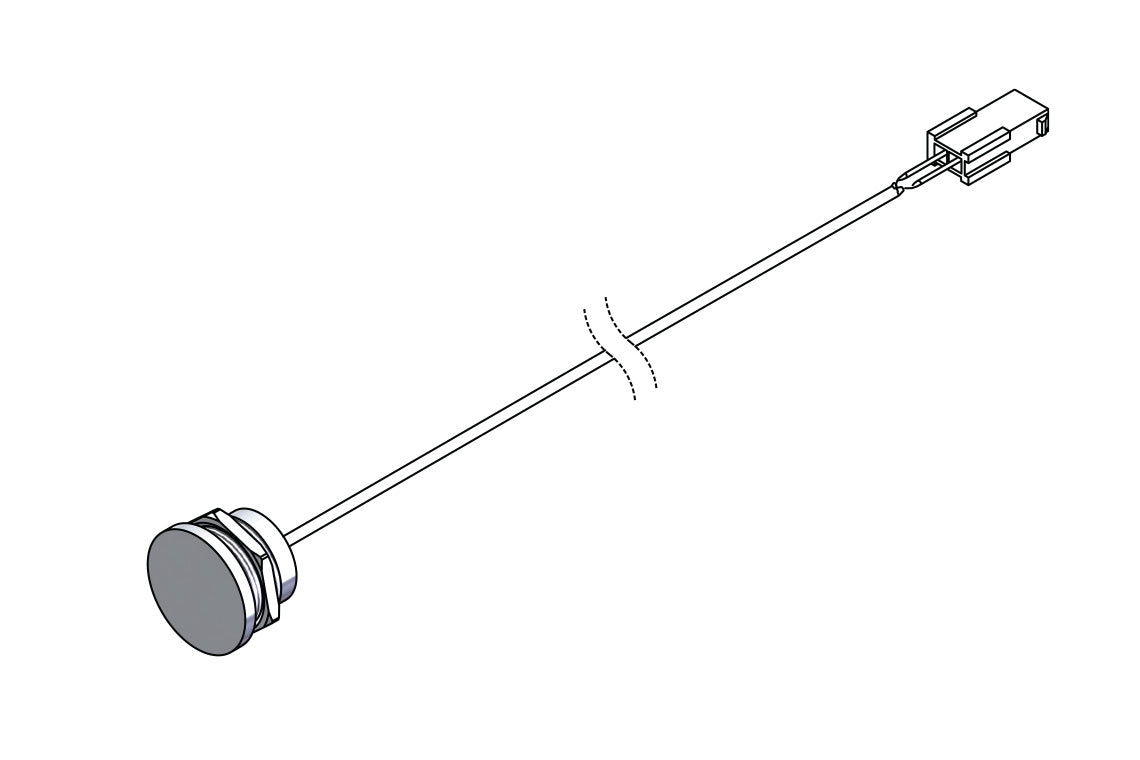

Piezo - WMS Plain Piezo - DC 300mm
Piezo - WMS Plain Piezo - DC 300mm
Product Code: WMS800
Couldn't load pickup availability
Product description
28mm Piezo switch- plain anodised
Key Selling Points
- Piezo Spare Parts - WMS Plain Piezo DC 300mm
- Touch activated switch- must be used with relevant WMS hub with programming for operation. Does not have individual programming within the piezo.

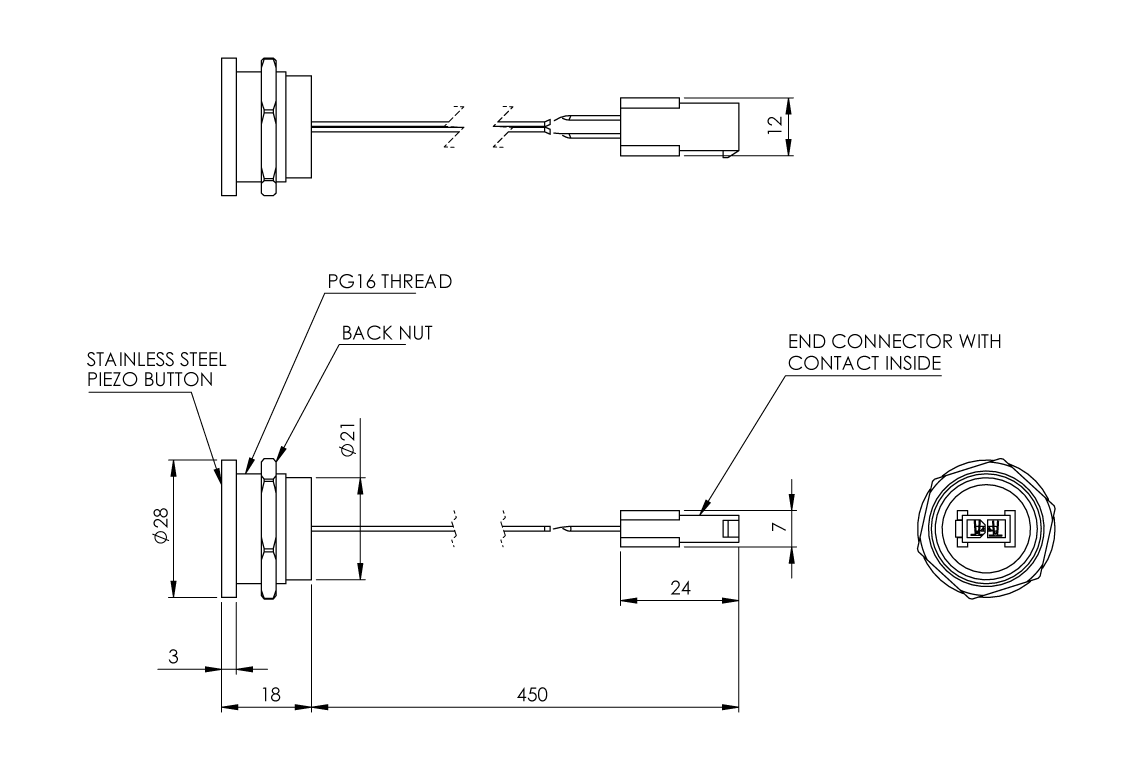

- 28mm Diameter x 3mm rise. Includes back nut for securing to panels.
- Suitable for ligature resistant installation, subject to secure installation on vertical surface.
- Suitable for AS1428 applications- when correctly installed- raised button, touch operated.

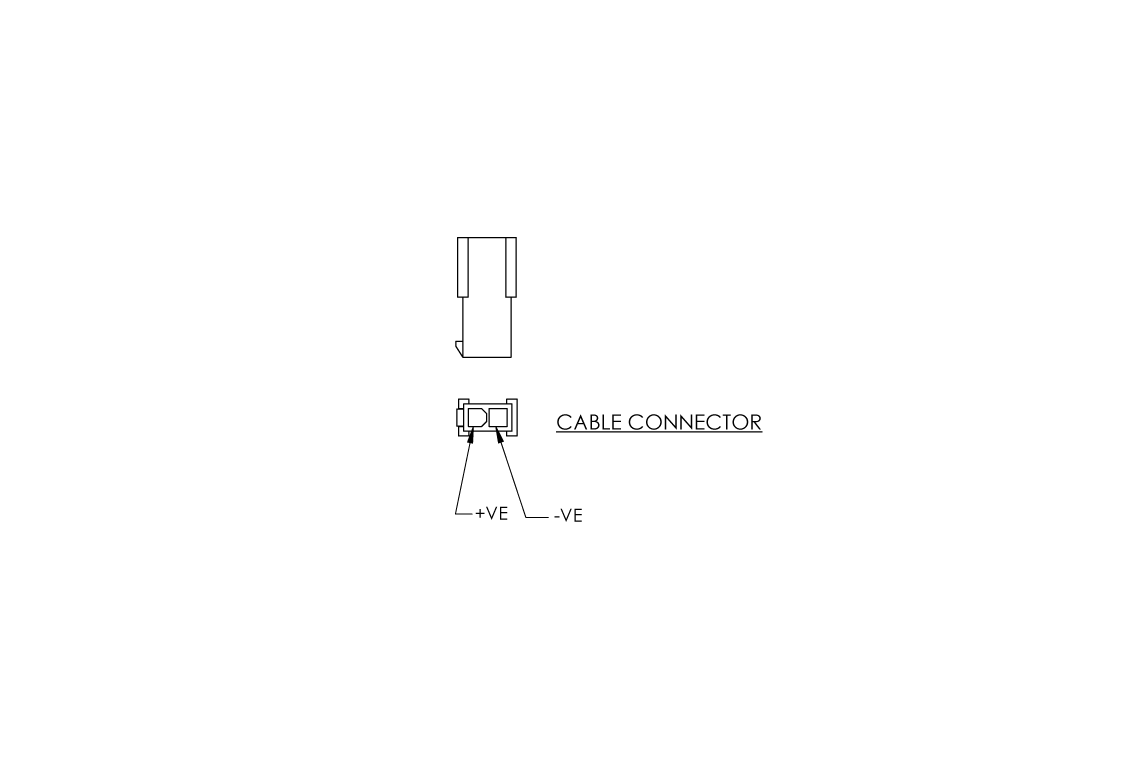

- Waterproof and IK10 rated for impact resistance. Supplied with 450mm cable and connector.
- Suitable for up to 24V AC/DC
- Also available as anodised colour- (may not be stocked)
-792546 (Blue)
-792545 (Red)
- Power Supply (AC/DC)
- EITHER
- Power Supply Current (A)
- 1
- IP Rating
- 68
BIM Files
Brochures
Dimensional Drawings
Product Information
