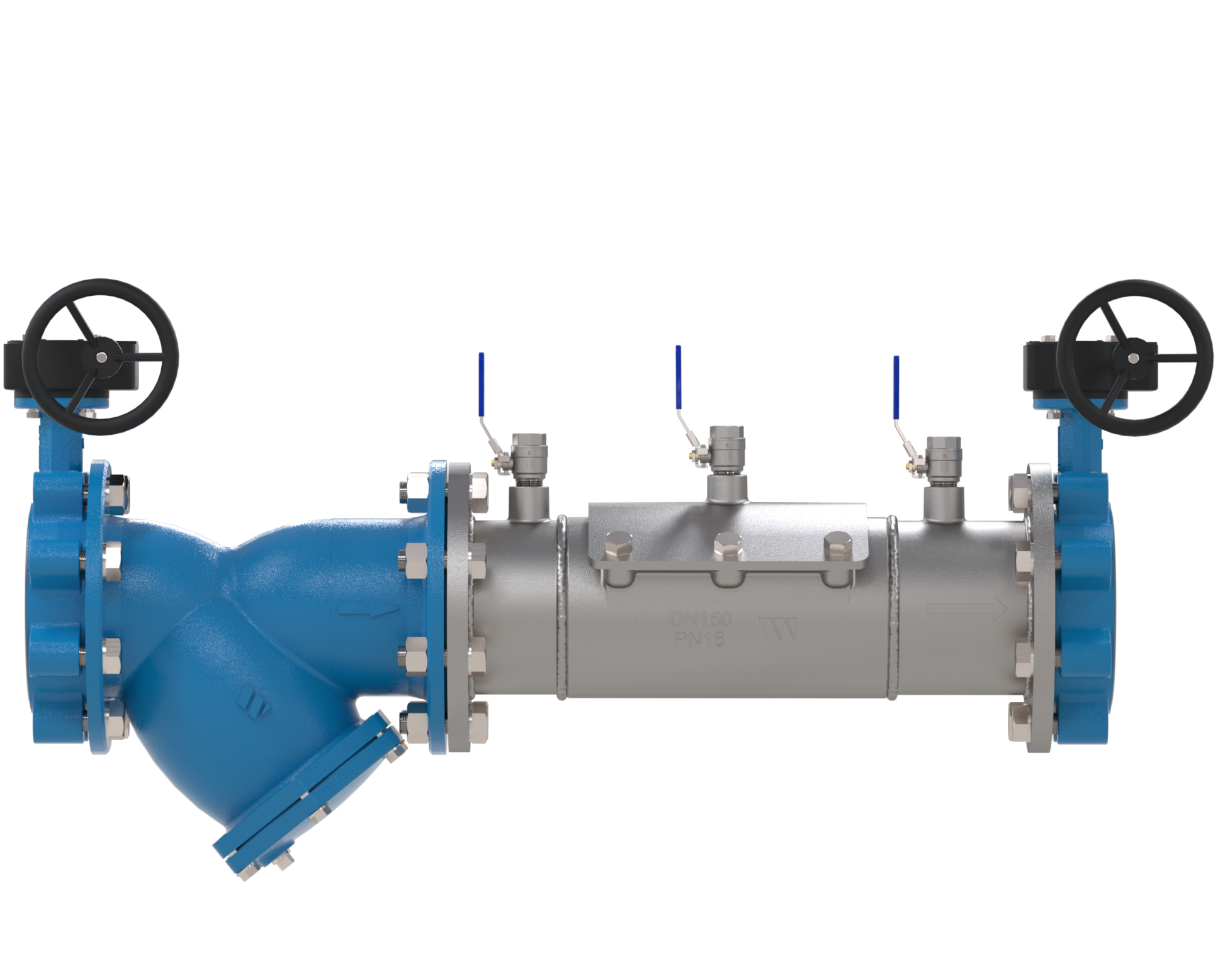

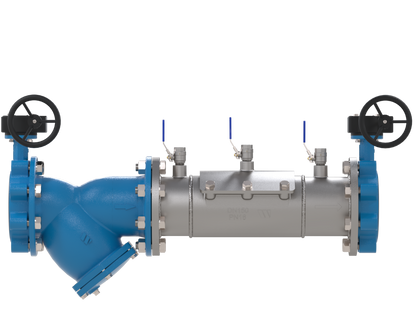

Stainless Steel Double Check Valve – GBS Kit
Stainless Steel Double Check Valve – GBS Kit
Product Code: 007-SS-GBS-GROUP
Couldn't load pickup availability
Product description
The series 007-SS-GBS Silver Stallion Stainless Steel Double Check Valves with Geared Butterfly Valves and Strainer are designed to prevent the reverse flow of polluted water from entering the potable water supply. These models can be applied, where approved by the local authority, for cross connection control in Medium and Low Hazard installations.
Series 007-SS-GBS feature short end-to-end dimensions, light weight stainless steel body, and low head loss.
Key Selling Points
- Easy Two Person Install: Short lay length and lightweight construction
- Easy servicing: No special tools, large access cover, easy to remove checks with serviceable parts

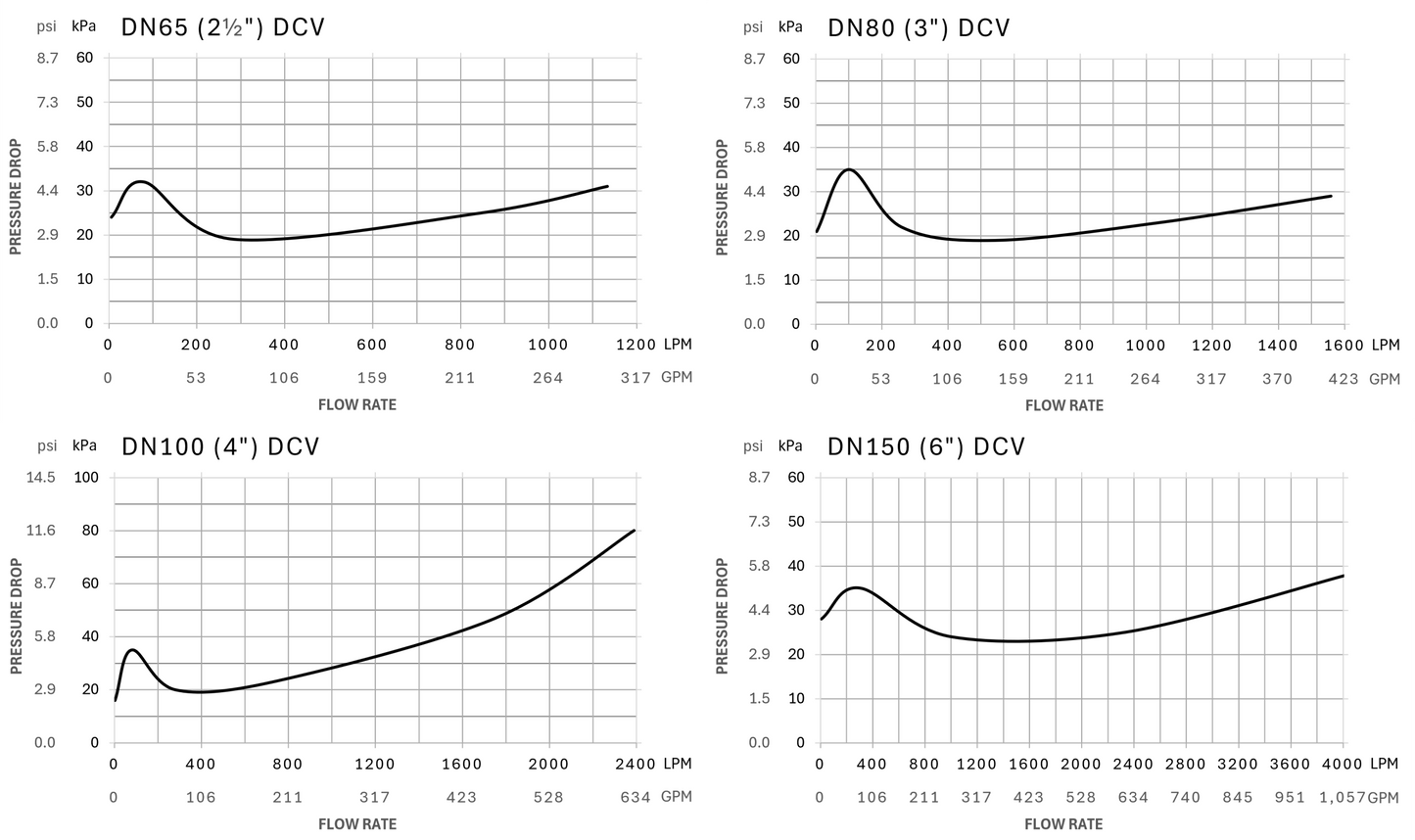

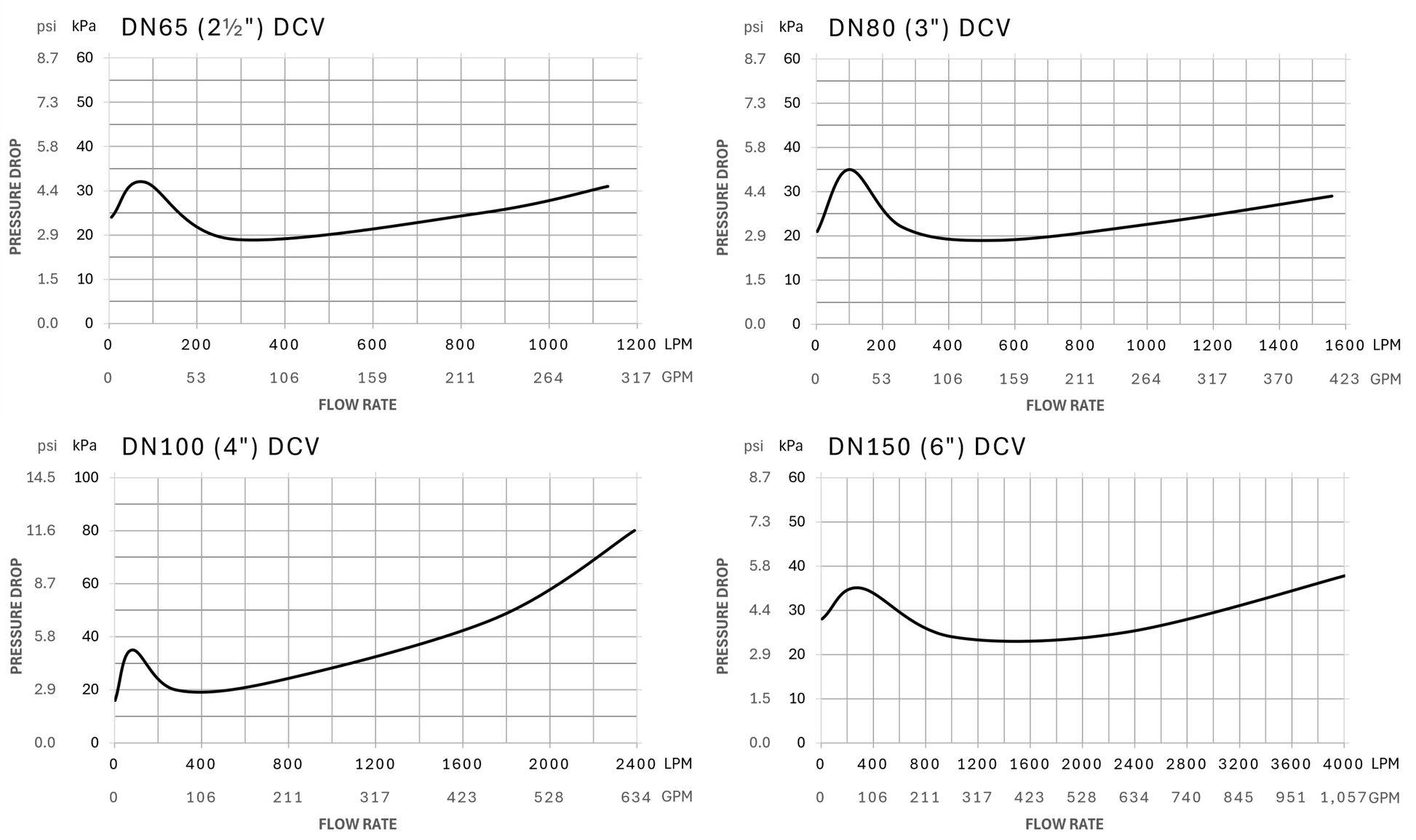

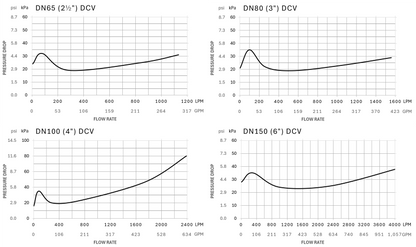

- Low Head Loss: Patented Dual ActionTM check valves provide reliable sealing and high flow
- Built to last: PREN18 Stainless Steel, PN16 rating and extra strength flanges
- Available in DN65-150 RPZ, DCV and DDC versions
- Certifications
- WMK25866,AS/NZS 2845.1,WMK26990
- Minimum Operating Temperature (Deg C)
- 0.5
- Maximum Operating Temperature (Deg C)
- 60
- Inlet Connection
- AS2129 Table E
- Outlet Connection
- AS2129 Table E
BIM Files
Brochures

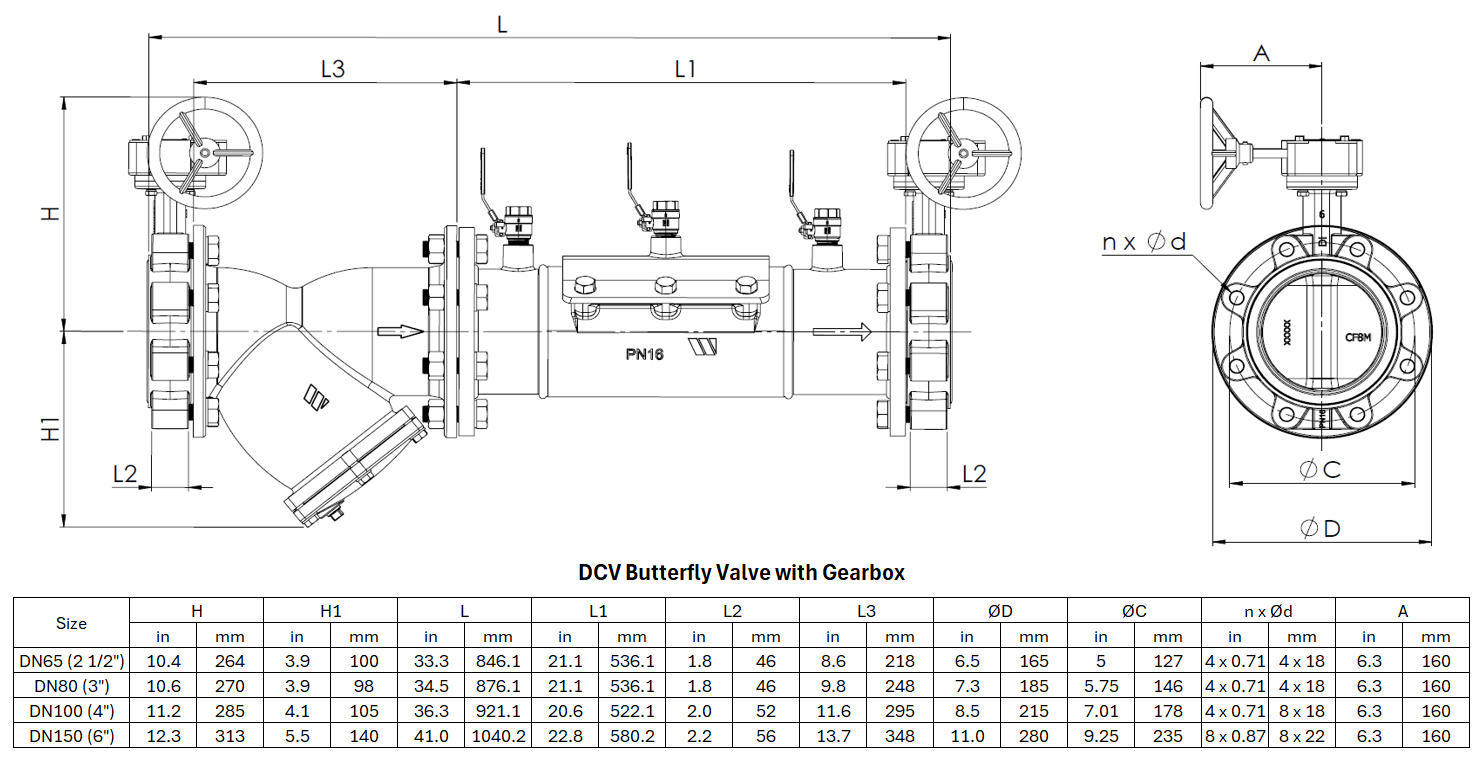

Dimensional Drawings
Product Information
