Touch-Free Wall Sensor Tap: In-Wall Component - Battery Operated
Touch-Free Wall Sensor Tap: In-Wall Component - Battery Operated
Product Code: ENM620
Couldn't load pickup availability
Product description
Touch-free sensor tap designed for general hand hygiene within health care and food preparation facilities.
Key Selling Points
- In-Wall component for ENMA and ENMW series sensor tap
- Low voltage 6V battery operated
- IP67 rated connections
- Compatible with Smartflow Monitoring System for TMV monitoring and reporting
- Back and front of wall components offered may be ordered and supplied separately to meet construction needs
- Requires Front-of-Wall component
- Certifications
- WMKA1583 - LF,Smart Flow Enabled,Lead Free
- Maximum Water Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 800
- Static Inlet Pressure (kPa)
- 1000
- Minimum Recommended Pressure (kPa)
- 20
- Maximum Recommended Pressure (kPa)
- 500
- Flow Notes
- Adjustable flow time to 3, 6, 9 or 12 seconds. (Default 6 seconds)
- Inlet Connection
- 1/2" BSP
- Power Supply (AC/DC)
- AC
- Power Supply (V)
- 24
- Maximum Sensor Range (mm)
- 170
BIM Files
Brochures

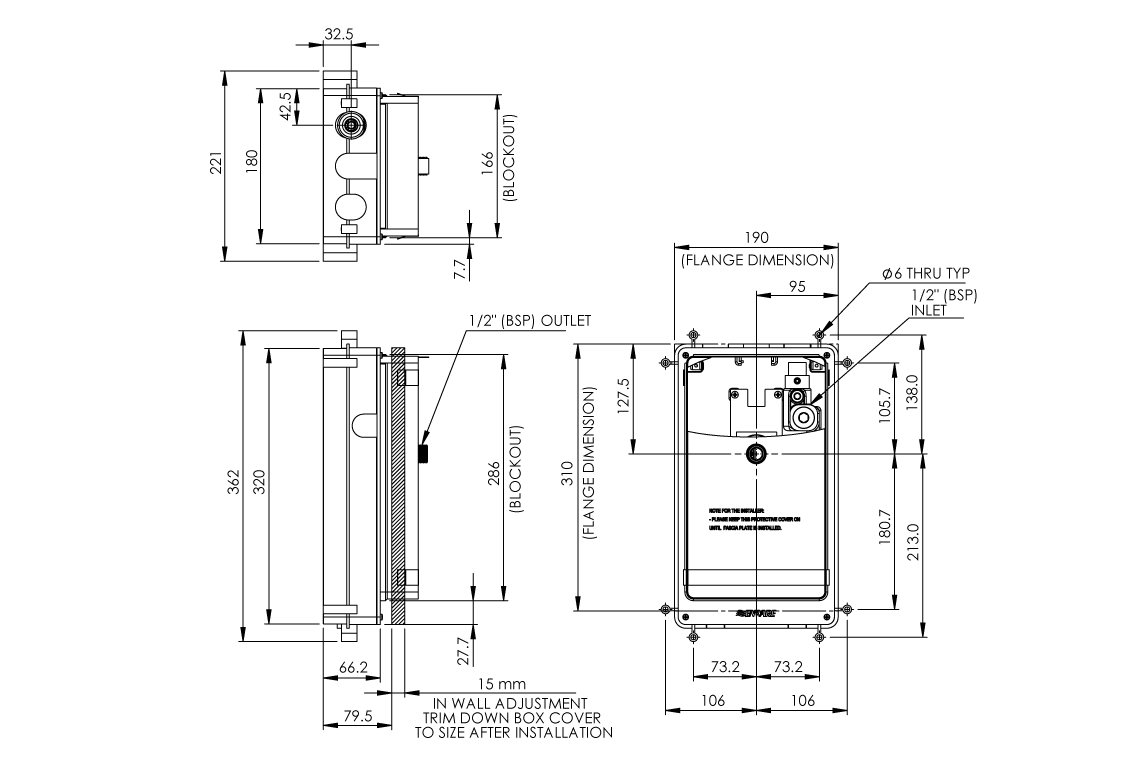

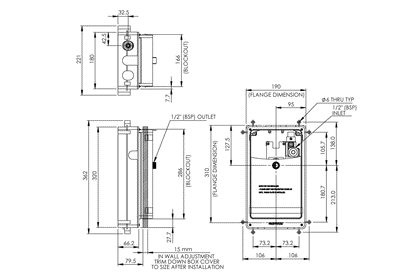

Dimensional Drawings
Product Information
