Two Button Control Kit - Front Access for In Wall Application - Adjustable Time
Two Button Control Kit - Front Access for In Wall Application - Adjustable Time
Product Code: EMD820SS
Couldn't load pickup availability
Product description
The water efficient Detention tapware series have been designed to provide a high level of security with the inclusion of vandal resistant features. Ideal for use in public facilities, correctional facilities or areas where risk of vandalism may be present.
Key Selling Points
- Allows for delivery of water to two fixtures or warm and cold control for one fixture
- 2mm 304 Grade Stainless steel face plate, in wall mounting bracket and secure screws
- Touch-activated Piezo button with 1/2" Stainless Steel solenoid valve
- 24V DC power pack and 4.5m cable requires 240V GPO
- Factory set run time, adjustable on site
- Factory set run time - 4 minutes with early stop enabled and 30 seconds time out
- Adjustable from 3 seconds up to 10 minutes run time, with lockout and touch off function
- Ideal for Detention, public areas, council and camping facilities.
- For Shower and/or Basin controls
- Suitable for Cold or Pre-mixed (warm water)
- IP68 Rated Piezo button Stainless steel face plate
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Inlet Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 1000
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP (15mm)
- Finish
- Brushed
- Facia Plate Material Grade
- 304SS
- Power Supply (AC/DC)
- DC
- Power Supply (V)
- 24
- Power Supply Current (A)
- 1.25
- IP Rating
- IP68
BIM Files
Brochures

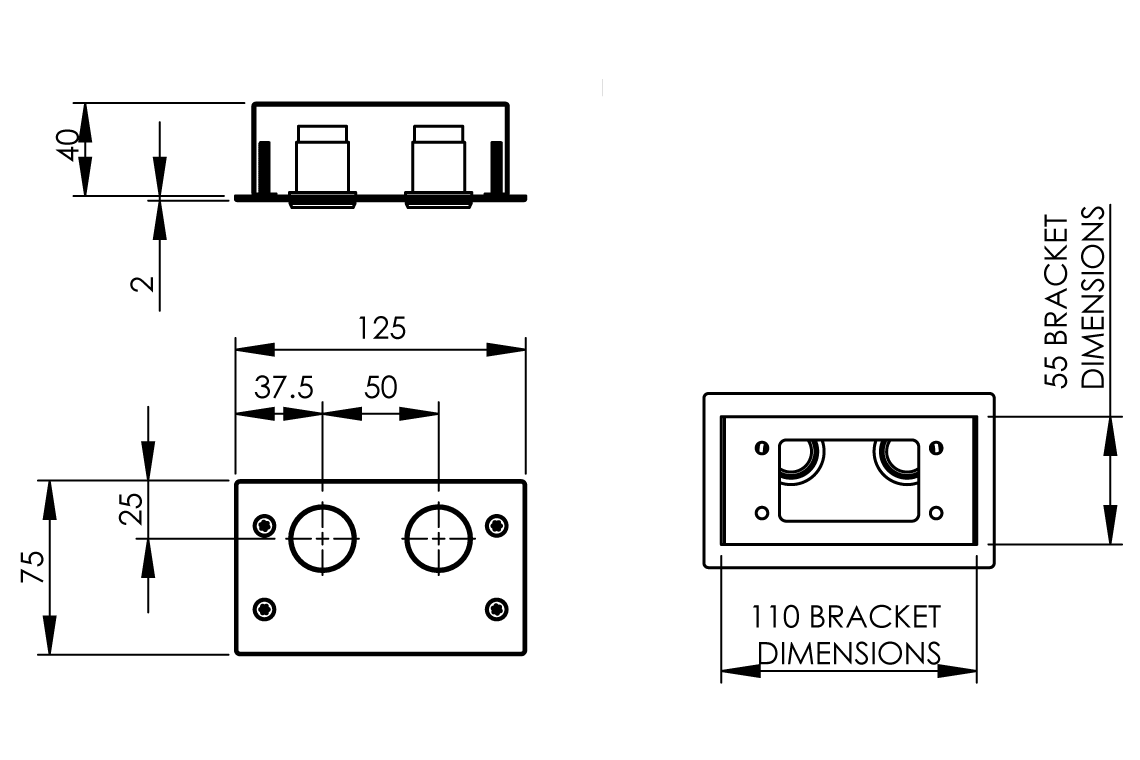

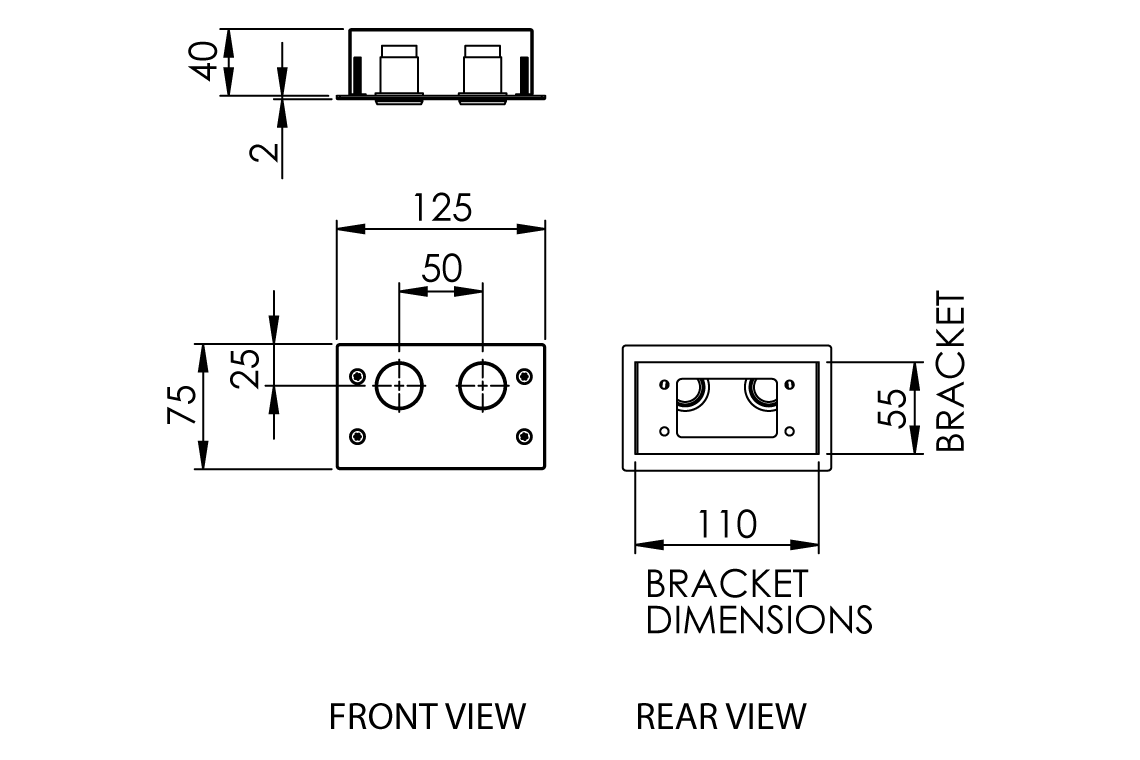

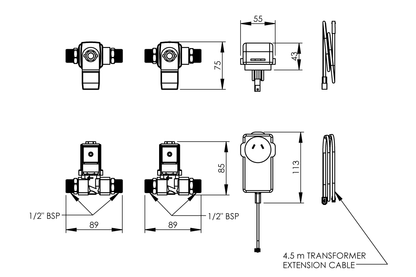

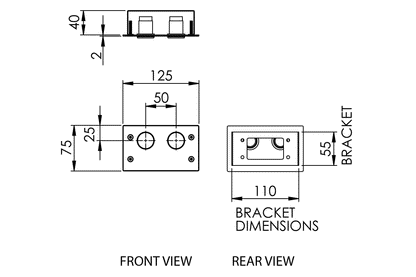

Dimensional Drawings
Product Information
