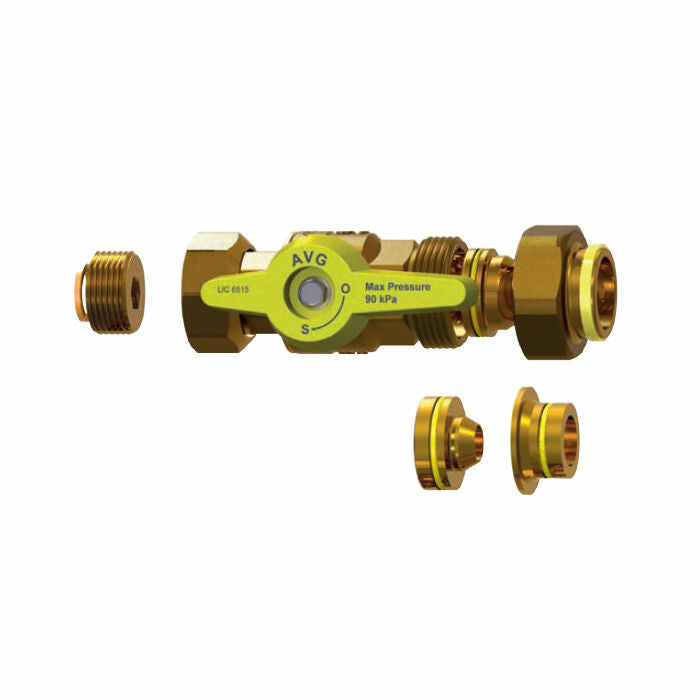

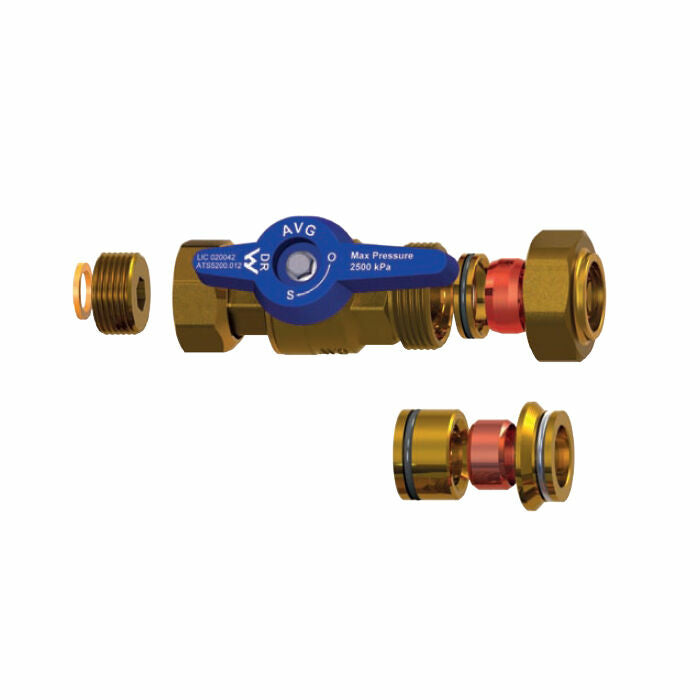

Universal Quick Installation Kit - Continuous Flow

Universal Quick Installation Kit - Continuous Flow

Product Code: QIK-U-LF

Product description

The Quick Continuous Flow Kit (Quickie-U) is a universal kit which includes a loose nut to male ball valve with optional inlet and outlet end connection adaptor options. The Quickie-U Kit has been developed to allow the installing plumber to decide what kit configuration is required at the point of installation. One of the major advantages to this approach is that the plumbing merchant only needs to carry one kit on the shelf and the installing plumber one kit in their vehicle. This not only saves cash flow but valuable shelf space and peace of mind. Currently the only options available to the plumbing merchant and the plumber are a range of purpose built ball valves and outlet fittings with fixed inlet and outlet connections. This means that they both have to carry extra products on the shelf and in their vehicles to cater for differing continuous flow water heater inlet and outlet configurations and installation requirements. The Quick Continuous Flow Kit includes everything required to install a variety of different continuous flow hot water heaters, two loose nut ball valves, one water and one gas and a hot water outlet fitting. Also included in the kit is a range of optional inlet and outlet connection adaptors for the water and gas ball valves and the outlet fitting, this allows the installing plumber to make their selection and fit the appropriate adaptors as required on site.

Key Selling Points

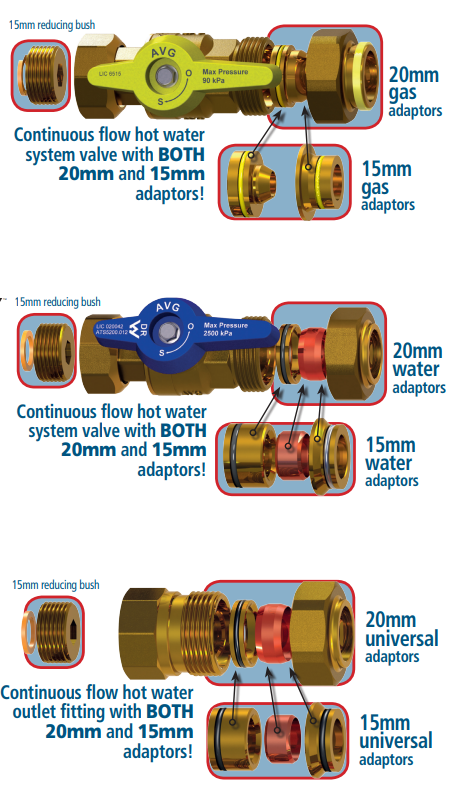

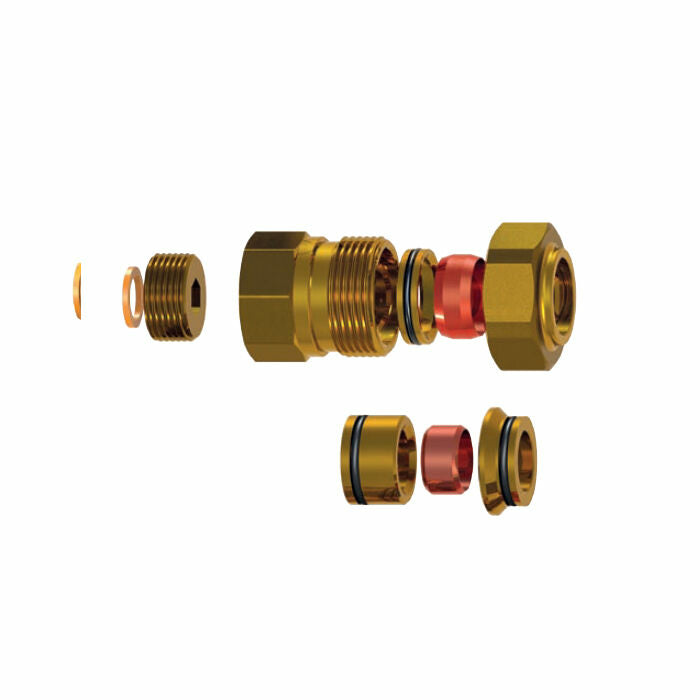

• Everything you need to install a continuous flow hot water heater in ONE box • One kit fits ALL • Water isolation ball valve with optional 15mm and 20mm compression inlet adaptors with optional 15mm reducing outlet adaptor complete with seal • Gas isolation ball valve with optional 15mm and 20mm flared inlet adaptors with optional 15mm reducing outlet adaptor complete with seal • Hot water outlet fitting with optional 15mm and 20mm outlet adaptors with optional 15mm reducing inlet adaptor with seal • Special tool to fit reducing adaptors

Certifications
AST 5200.012 Lic. 020042
Minimum Working Temperature (Deg C)
0
Maximum Working Temperature (Deg C)
60
Inlet Connection
15MM C/W OPTIONAL 20MM
Outlet Connection
15MM C/W OPTIONAL 20MM

BIM Files

    Brochures

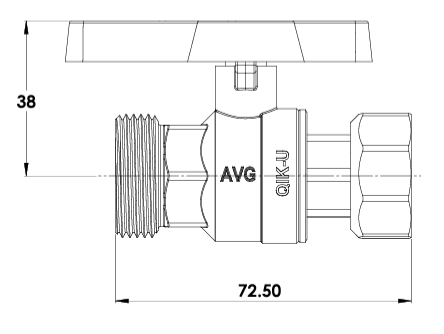

      Dimensional Drawings

        Product Information
