Leva Sequential Basin Mixer - 150mm Lever

Leva Sequential Basin Mixer - 150mm Lever

Product Code: LEV150306SQ

Product description

The LEVA Sequential Basin Mixer is a new concept in Single Lever Type Mixers, designed specifically for use in Health and Aged Care premises, making an attractive and durable addition to any commercial bathroom. The 150mm lever operates a sequential ceramic cartridge that does not require a “lift” motion, and turns progressively from off, to cold, to mixed with a subtle click indicator at each point to assist the user. This feature ensures the mixer is easy to use and control as well as reducing hot water consumption and potentially reducing the risk of legionella. The higher profile of the mixer and the longer spout provide easier access for effective handwashing. The spout can be removed for disinfection and the extended length ensures that the water stream does not flow directly into the basin waste, reducing the risk of airborne bacteria. Matches perfectly with the Aquablend Health TMV with Four Way Mixer.

Key Selling Points

  • Sequential Ceramic Disc Mixing Cartridge ensures ultimate control with cold start up and stop
  • "CLICK" at Off, Cold and Mixed positions
  • Removable spout allows disinfection
  • Neoperl Soft-Pex inlet pipes provide long term reliability
  • Colour indicators for Hot/ Warm, Cold and Off
  • Attractive, solid brass chrome body and 150mm Leva Handle ensures ease of use and cleaning
  • 150mm Lever Handle for AS1428/ ADA and Elbow operation applications
  • Laminar flow aerator reducing the risk of airborne bacteria
  • 80mm Lever Handle option available

Standard WELS (Stars)
5
Standard WELS Flow Rate (L/min)
5
WELS Category
Tapware
Certifications
WMKA1583 - LF,Lead Free
Minimum Working Temperature (Deg C)
5
Maximum Working Temperature (Deg C)
85
Maximum Recommended Pressure (kPa)
500
Primary Flow Rate (L/min)
5
Finish
Chrome
Valve Type
Ceramic Disc

BIM Files

Brochures

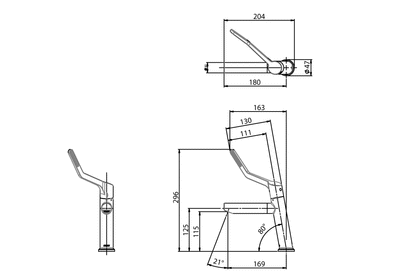

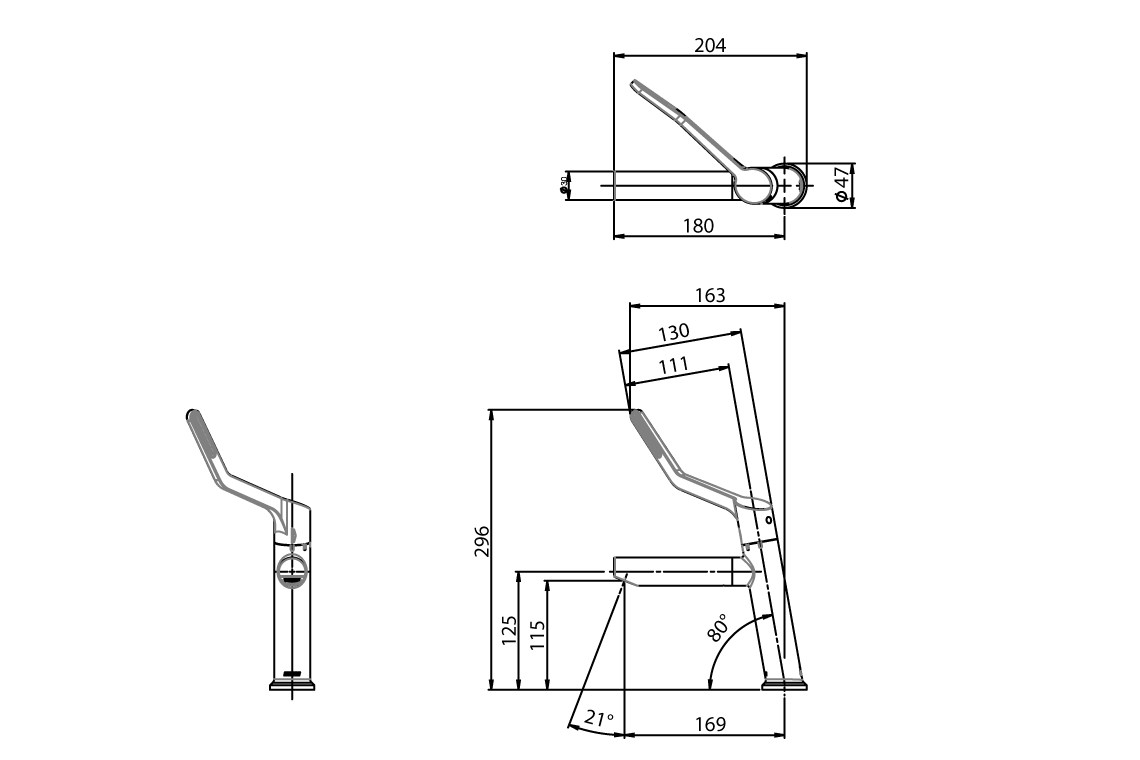

    Dimensional Drawings

    Product Information
