Wellbeing 800 Wall Faced Pan - Grey - Single Flap Seat
Wellbeing 800 Wall Faced Pan - Grey - Single Flap Seat
Product Code: WELLBEING800BTW
Couldn't load pickup availability
Product description
Wellbeing 800 raised height wall faced vitreous china pan, ideal for hospitals, aged care and commercial applications to meet AS1428.1 compliance for people with disabilities and restricted movement.
Key Selling Points
- Meets AS1428.1 when installed with a backrest
- Rimless design for improved flushing and cleanliness
- Extended pan projection of 800mm suitable for wheelchair use
- Available with S or P Trap installations (S-trap Adaptor included)
- Single-flap grey seat included​, which is statically load tested to 407kg
- Floor fixing bolts included, with concealed fixing brackets and screws
- Coving available on request (additional lead times apply)
- Standard WELS (Stars)
- 4
- Certifications
- WMK25988-AS1172.1,WELS-4 Star-3.5L-WC Flush-1509,A&A - Accessible
- Other Compliance
- WHEELCHAIR ACCESSIBLE
- WELS Half Flush Volume (L)
- 3
- WELS Average Flush Volume (L)
- 3.5
- Inlet Connection
- Flush pipe connection with 40mm Kee Seal
- Outlet Connection
- DN100 DWV PVC Pipe (S-Trap Adaptor) DN100 DWV PVC Pan Collar (P-Trap)
- Connection Notes
- Flush pipe connection with 40mm kee seal
BIM Files
Brochures

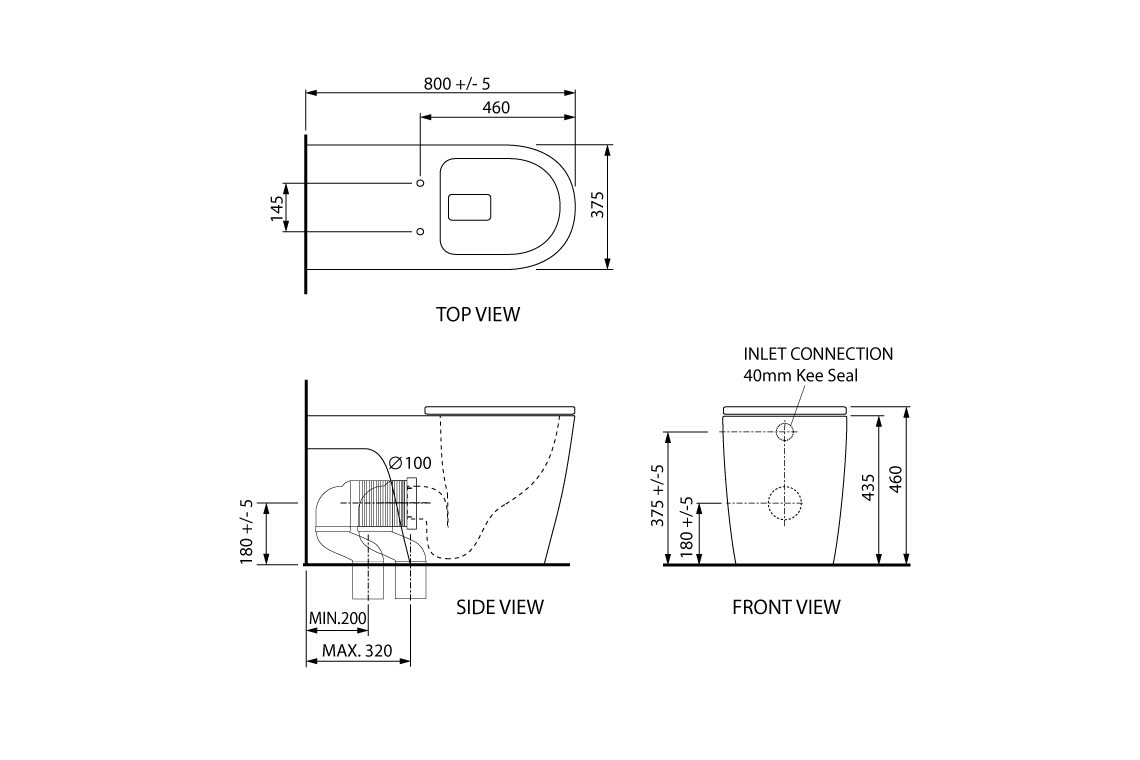

Dimensional Drawings
Product Information
