ComLab 150mm 90 Degree Fume Cupboard Outlet - Water
ComLab 150mm 90 Degree Fume Cupboard Outlet - Water
Product Code: LCN166WATER
Couldn't load pickup availability
Product description

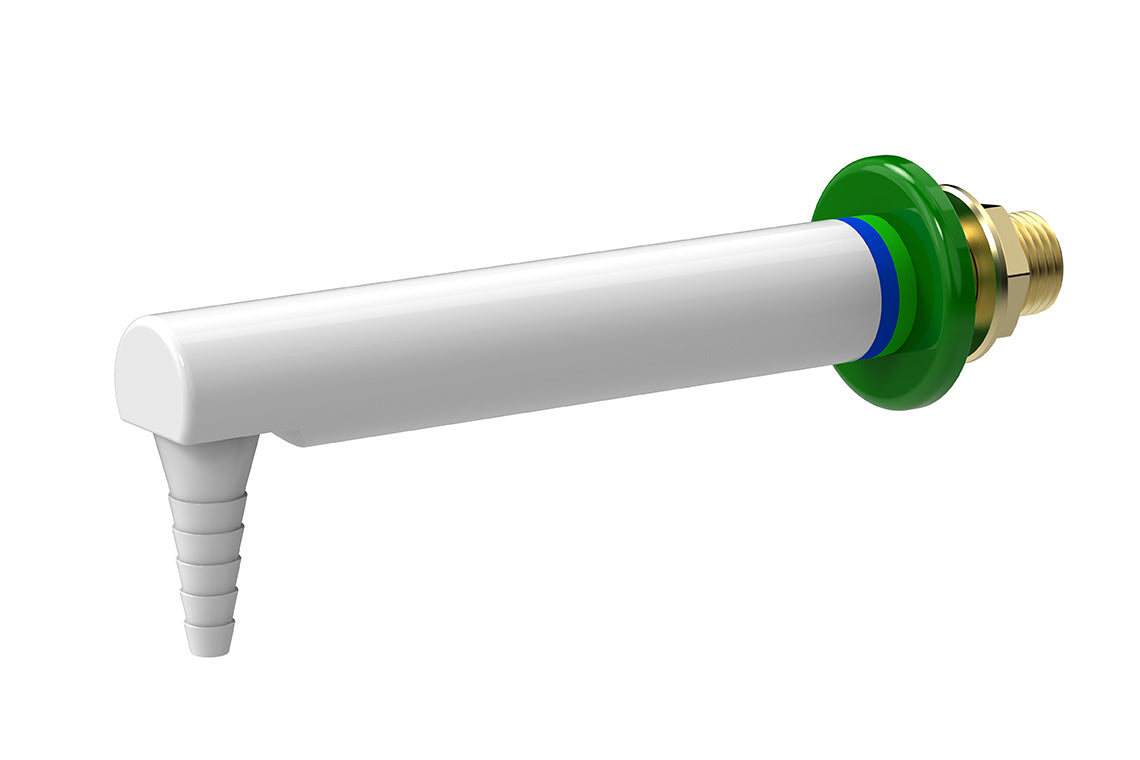

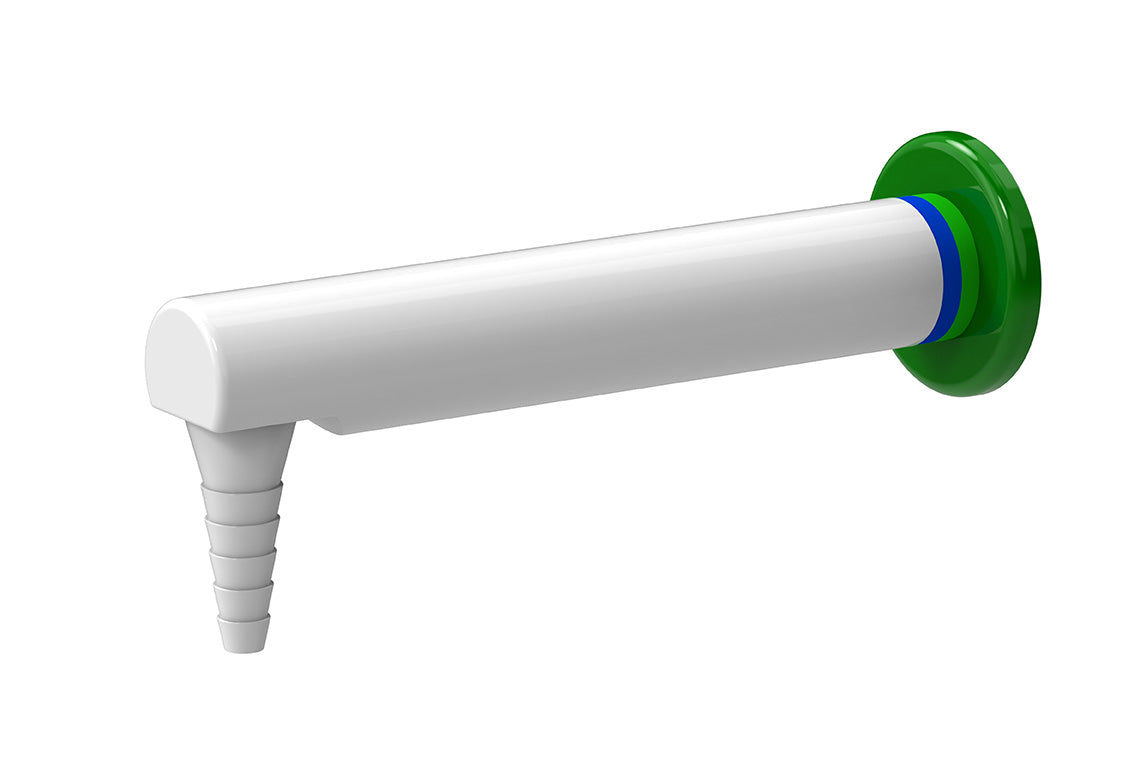

Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded back plate and indicator rings are provided to identify services.
Key Selling Points
- 90 degree outlet suitable mounting in Fume Cupboards
- Durable white epoxy powder coat finish with colour coded back plate and indicator rings
- 1/2” BSP male inlet tail and backnut with internal 1/4” BSP female thread connection
- Tube nozzle outlet with flow control and check valve. 3/8" BSP FI when removed

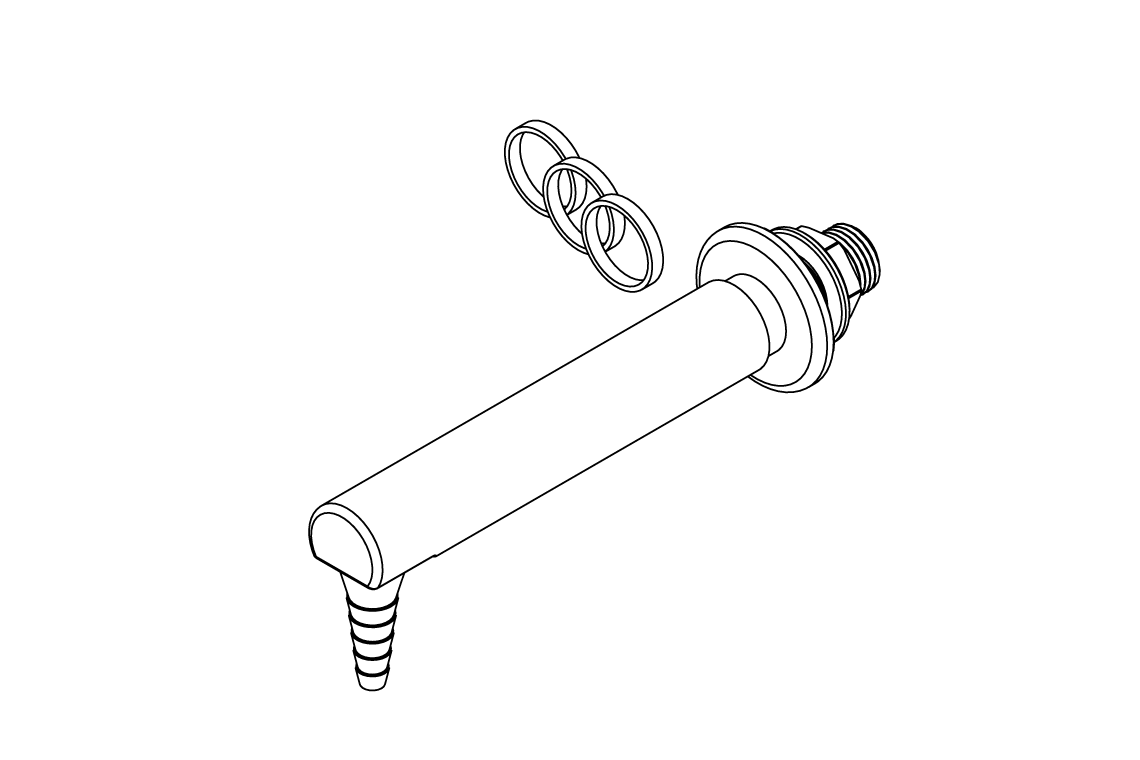

- Indicator rings for compatible media included
- Compatible media: Cold Water, Hot Water, Chilled Water
- Lead free brass
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,Lead Free
- Maximum Working Temperature (Deg C)
- 90
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/2” BSP Male, 1/4” BSP Female
- Finish
- Powder Coating
- Mounting Type
- 90 Degree Fume Cupboard Outlet
BIM Files
Brochures

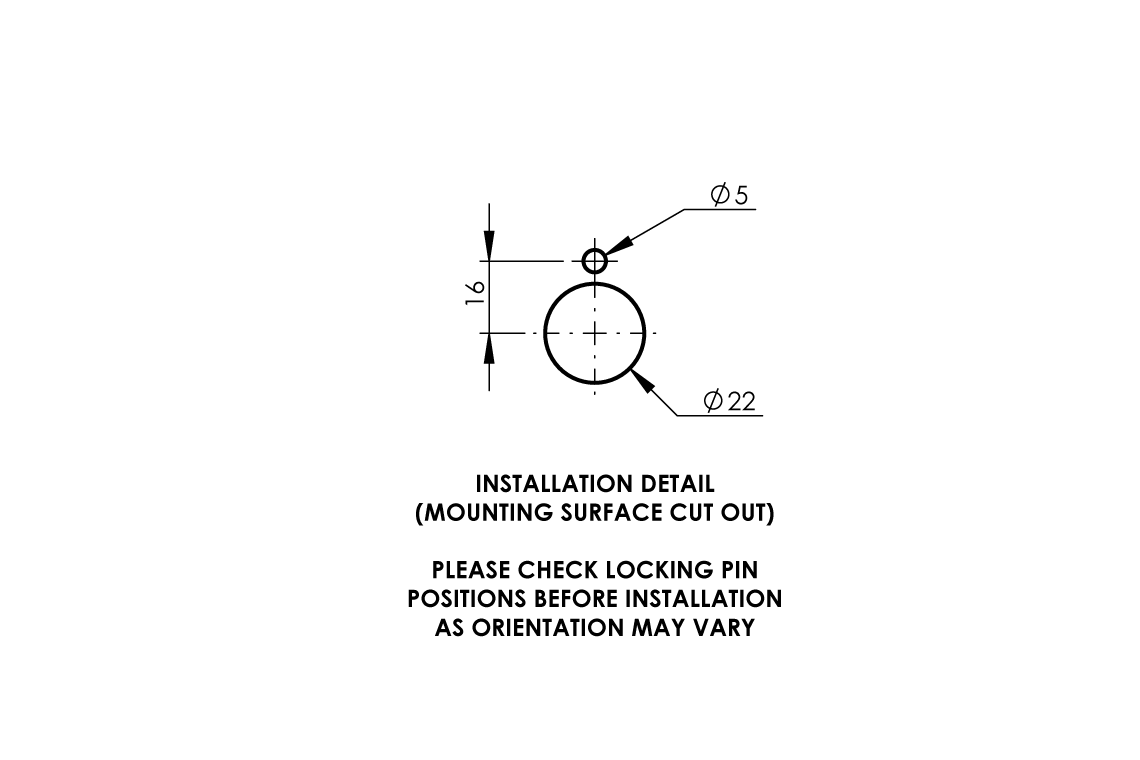

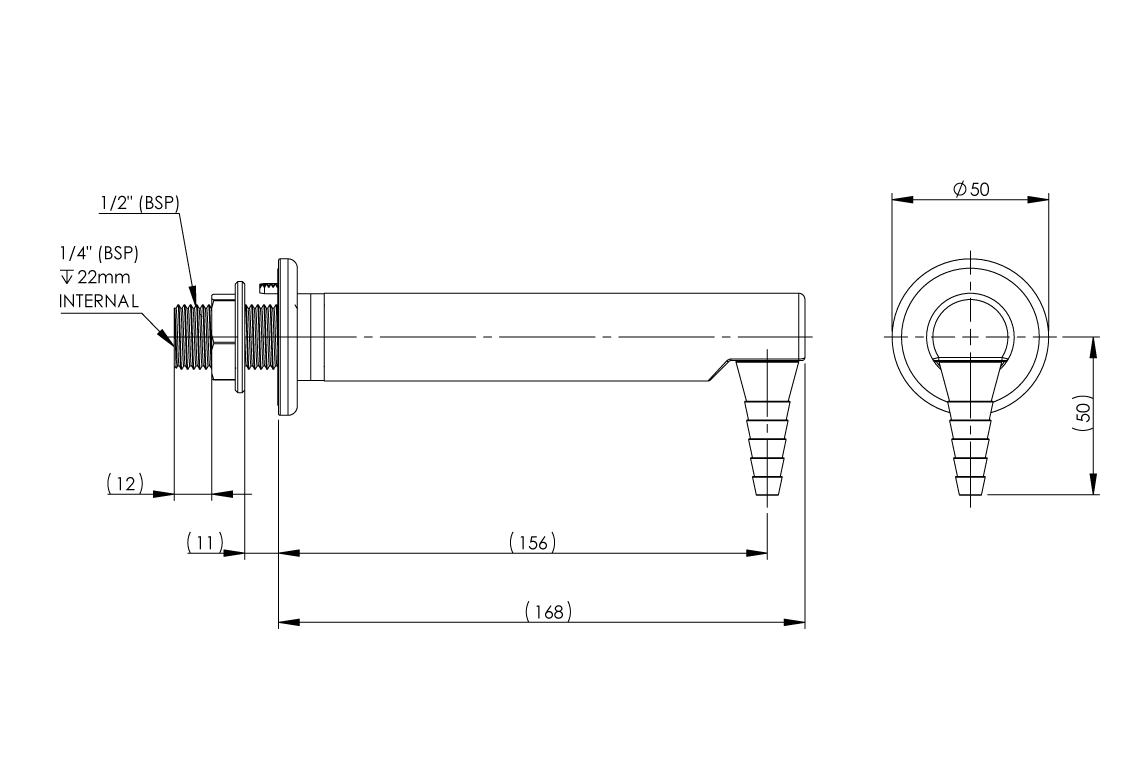

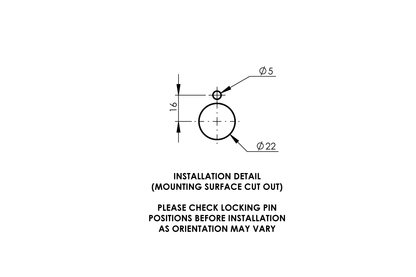

Dimensional Drawings
Product Information
