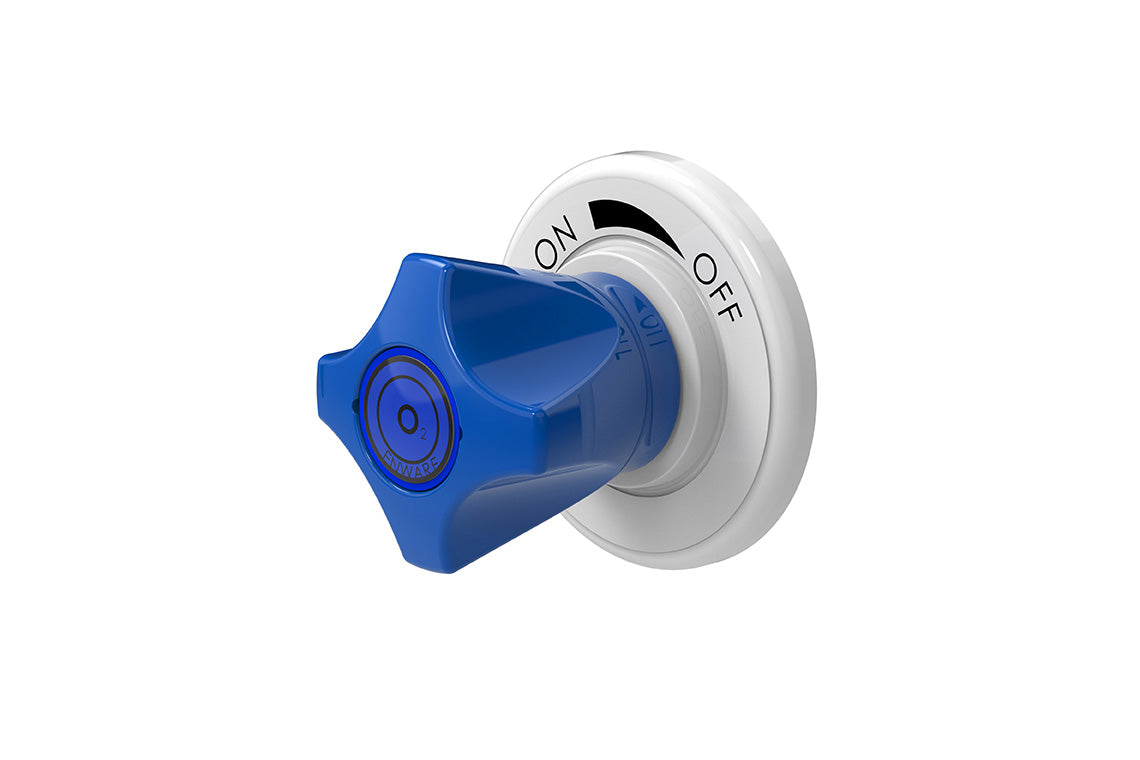

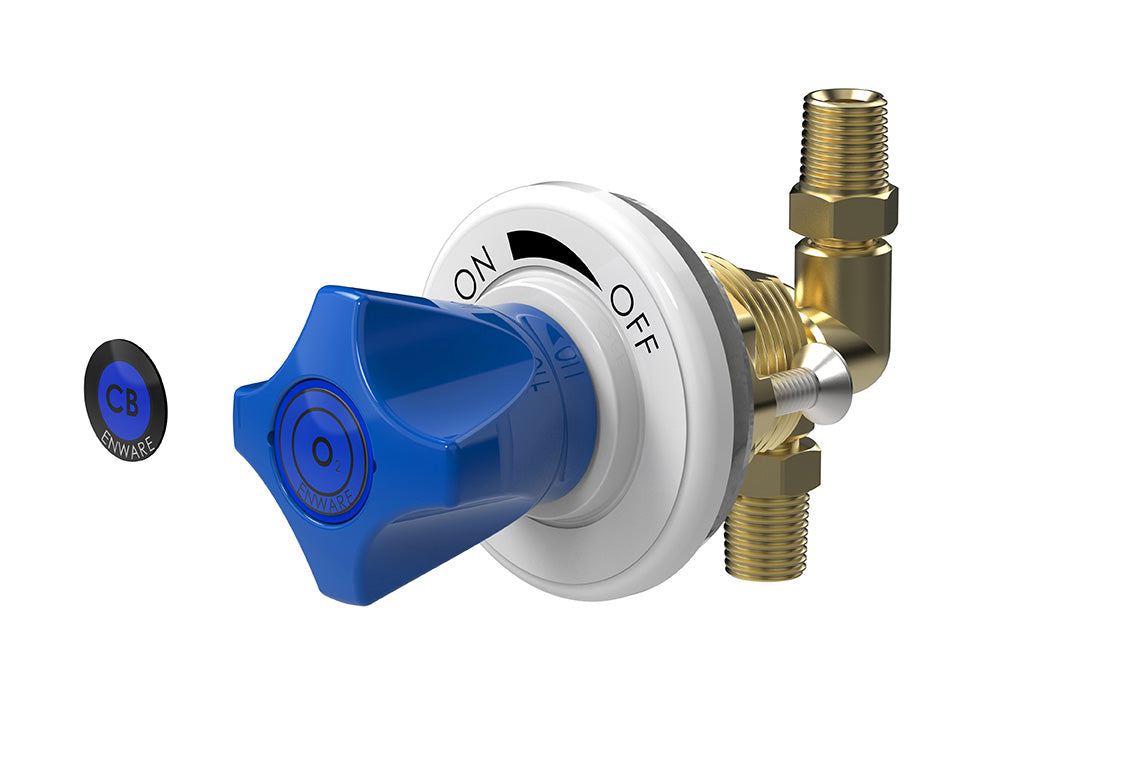

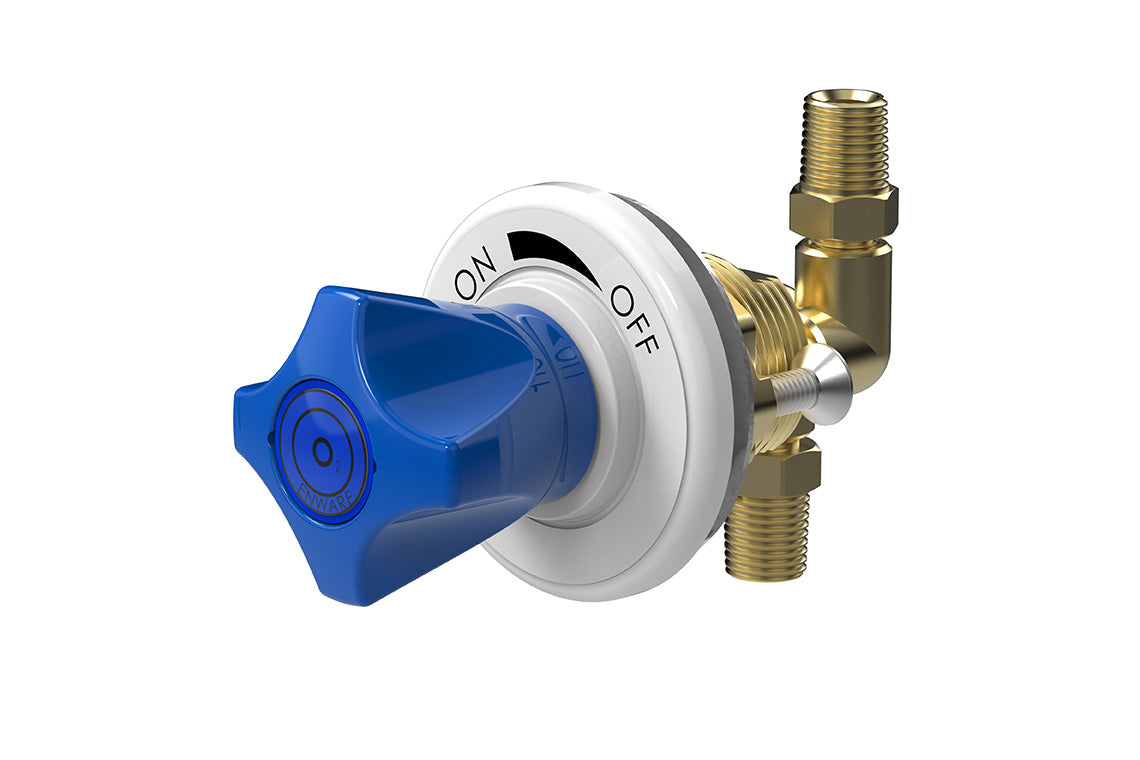

ComLab Front Panel Valve - 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Needle Valve - Oxygen
ComLab Front Panel Valve - 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Needle Valve - Oxygen
Product Code: LCN153NOXY
Couldn't load pickup availability
Product description
Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- Suited for dry media up to technical gas level 4.0
- Chemically and ultrasonically cleaned

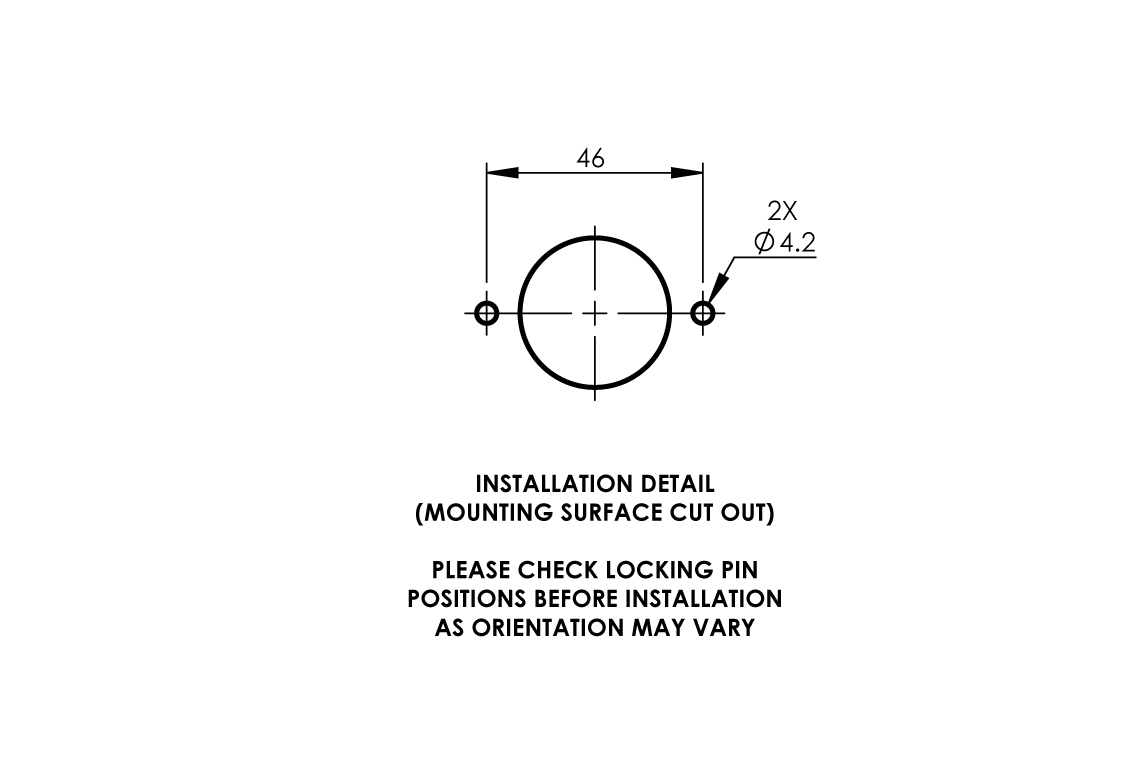

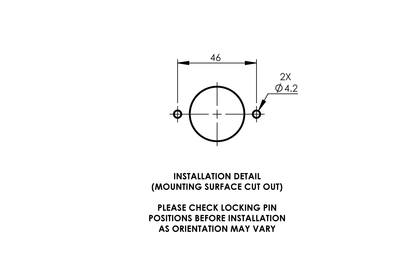

- Can be fixed from the front with screws (not supplied) or from the rear with backnut
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 1/4" BSP MI 90 Degree Inlet/Outlet for use with LC188 1.0 metre hoses
- Blue handle and indicator button identification to DIN EN13792

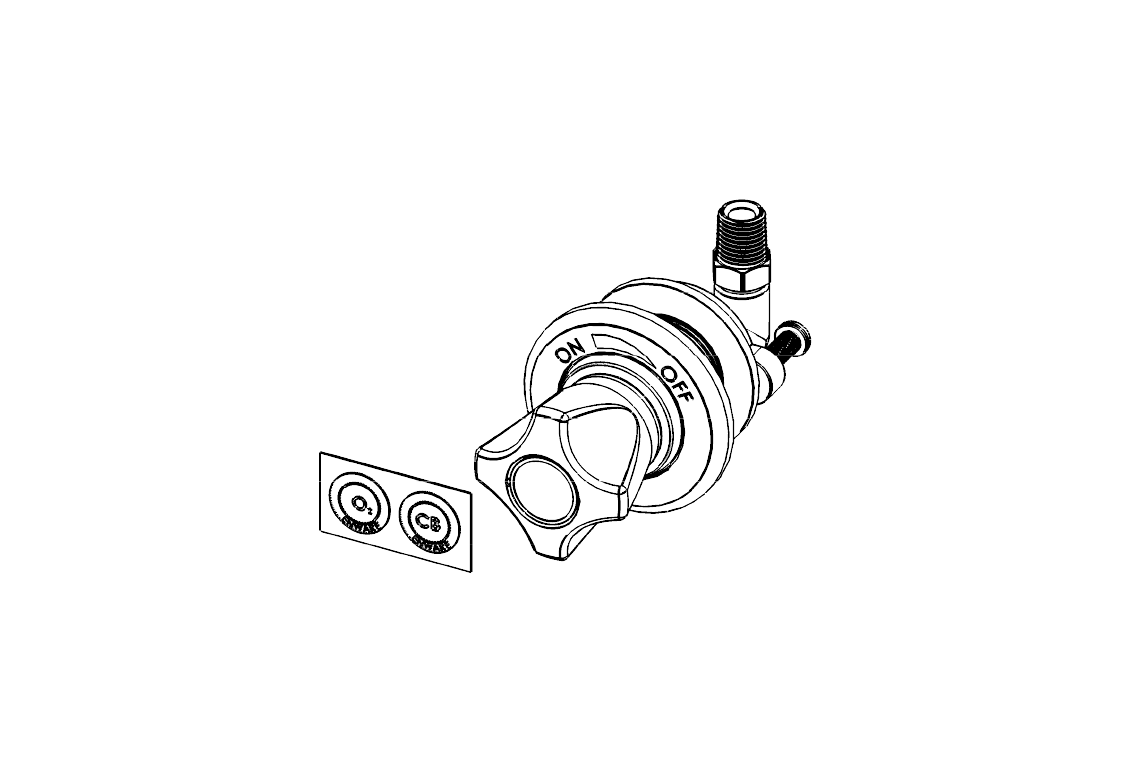

- Indicator buttons for compatible media included
- Compatible media: Oxygen, Carbogen
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/4" BSPMI
- Outlet Connection
- 1/4" BSPMI
- Connection Notes
- Union spigot suitable for LC188 connecting hose
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- Front Panel Valve
BIM Files
Brochures

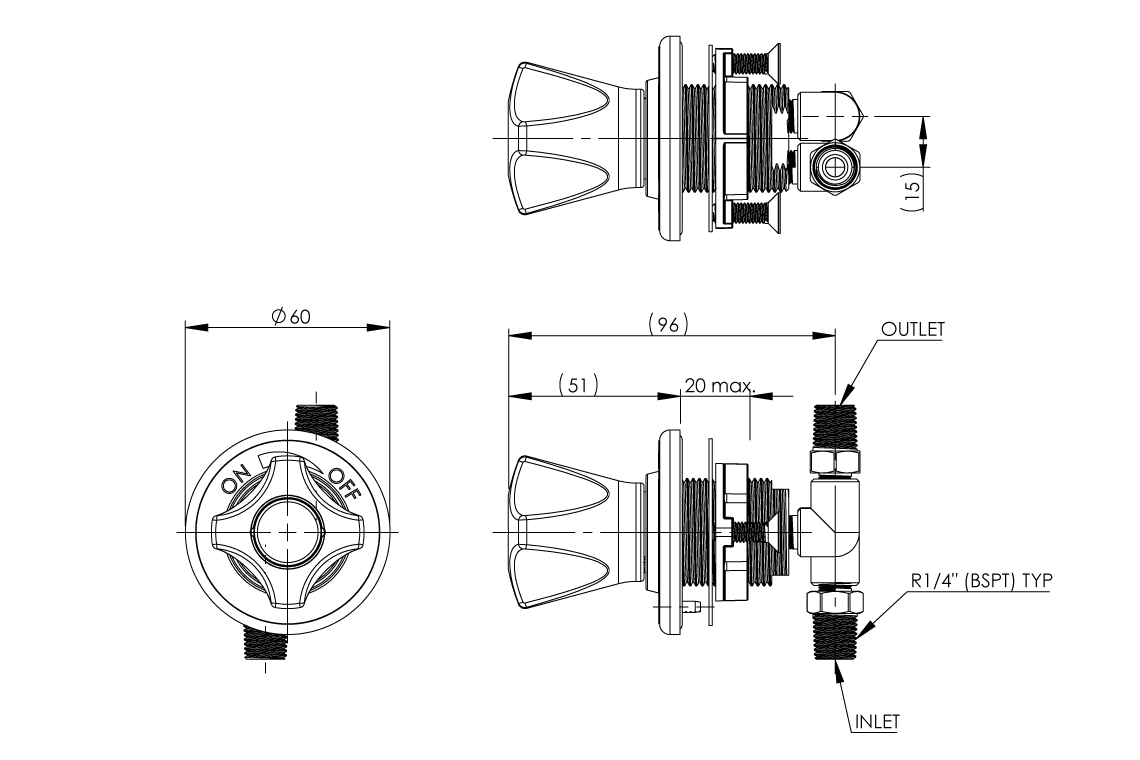

Dimensional Drawings
Product Information
