Leva Sequential Basin Mixer - 80mm Lever
Leva Sequential Basin Mixer - 80mm Lever
Product Code: LEV80306SQ
Couldn't load pickup availability
Product description
The LEVA Sequential Basin Mixer is a new concept in Single Lever LEV80306SQ Type Mixers, designed specifically for use in Health and Aged Care premises, but makes an attractive and durable addition to any commercial bathroom. The standard 80mm lever operates a sequential ceramic cartridge that does not require a “lift” motion, and turns progressively from off, to cold, to mixed with a subtle click indicator at each point to assist the user. This feature ensures the mixer is easy to use and control as well as reducing hot water consumption and potentially reducing the risk of legionella. The higher profile of the mixer and the longer spout provide easier access for effective handwashing. The spout can be removed for disinfection and the extended length ensures that the water stream does not flow directly into the basin waste, reducing the risk of airborne bacteria. Matches perfectly with the Aquablend Health TMV with Four Way Mixer.
Key Selling Points
- Sequential Ceramic Disc Mixing Cartridge ensures ultimate control with cold start up and stop
- ?CLICK? at Off, Cold and Mixed positions
- Removable spout allows disinfection
- Neoperl Soft-Pex inlet pipes provide long term reliability
- Colour indicators for Hot/ Warm, Cold and Off
- Attractive, solid brass chrome body and 80mm Leva Handle ensures ease of use and cleaning
- Laminar flow aerator reducing the risk of airborne bacteria
- 150mm Lever Handle option available for AS1428/ ADA and Elbow operation applications
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 5
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,Lead Free
- Minimum Working Temperature (Deg C)
- 5
- Maximum Working Temperature (Deg C)
- 85
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 5
- Finish
- Chrome
BIM Files
Brochures

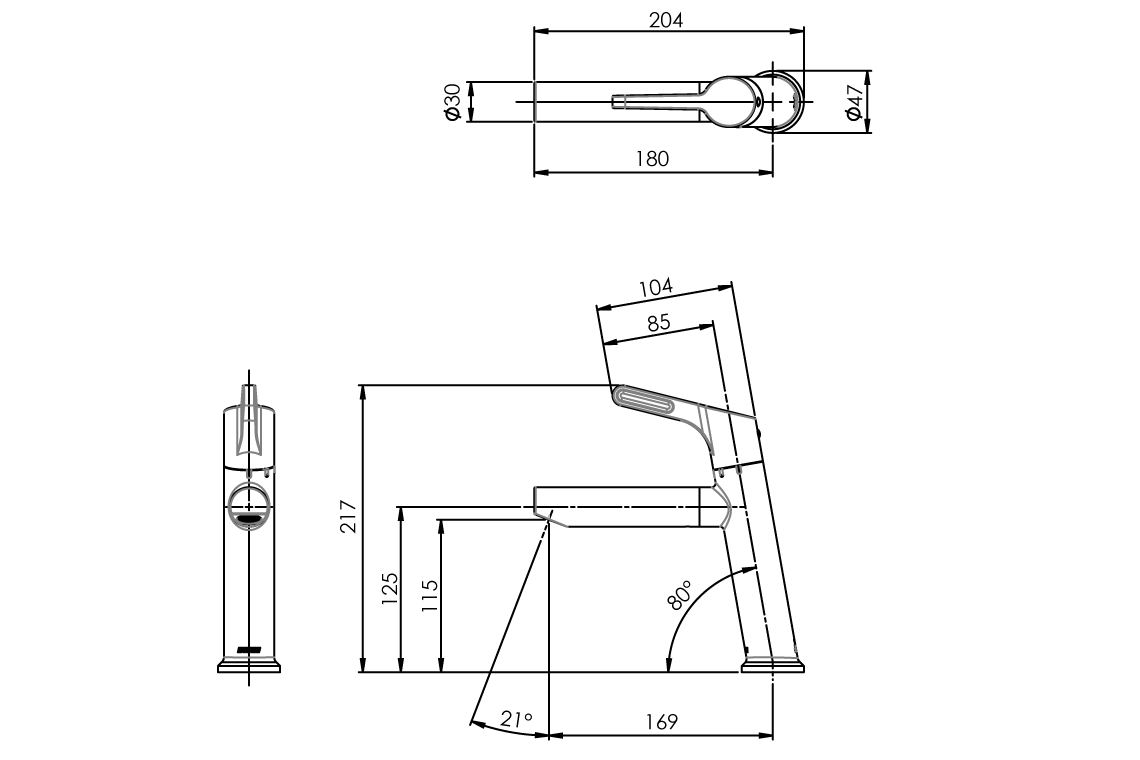

Dimensional Drawings
Product Information
